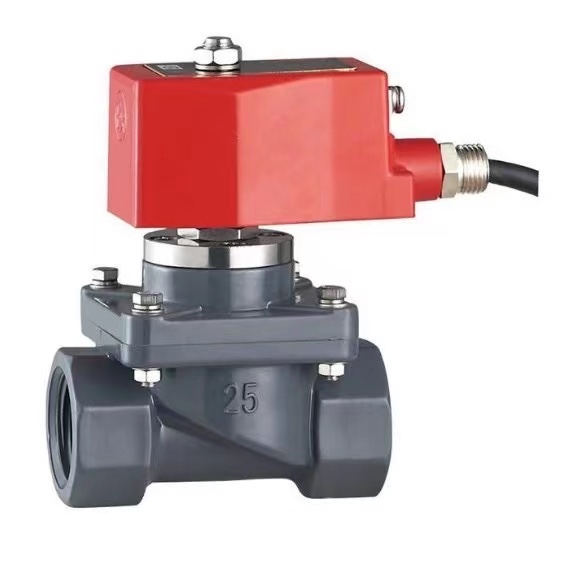

Piston type explosion-proof anti-corrosion solenoid valve

Working medium: acid and alkali and other corrosive media (liquid, gas)

Fluid temperature: UPVC(-5~55℃),CPVC(-10~80℃)

Ambient Temperature: -10~50℃

Working pressure: 0.3～6bar

Working type: Pilot diaphragm type (normally closed, normally open)

Valve body material: UPVC, CPVC

Seal material: fluorine rubber (VITON), optional EPDM rubber (EPDM)

Receiver type: G thread, NPT thread

Working voltage: DN15~25: AC220V start power 92VA keep power 8VA, AC110V start power 100VA keep power 9VA, DC24V start power 55W keep power 8W.

DN32~50:AC220V start power 140VA keep power 9VA,DC24V start power 54W keep power 8WExplosion-proof Certificate of Conformity GYB17.1593X,CCC Certificate No.2020322307000072,Explosion-proof grade:Exmb IICT6Gb,

Protection class IP68,H class, cable length 1.5 meters, non-standard cable length can be customized.
