Q10/12/13
SIZE:1/4''-4''
REDUCED BORE(800PSI/1000PSI)
THREADED:BSPT.BSP.NPT.DIN2999.ISO228
MATERIALS:CF8M(SS316),CF8(SS304)
Technical Features:
▲lnvestment casting body
▲ Working pressure 800/1000PSI for W.O.G.
▲Adjustable stem packing
▲Pure tflon seals and seats
▲Temperature range:-60 to 450°F
▲Blow-out proof stem,and safe prossure-reducing hole
▲100%leakage tested at 100PSl air under water
▲Hydrostatic test pressure:1500PSI
▲Locking device (optional)

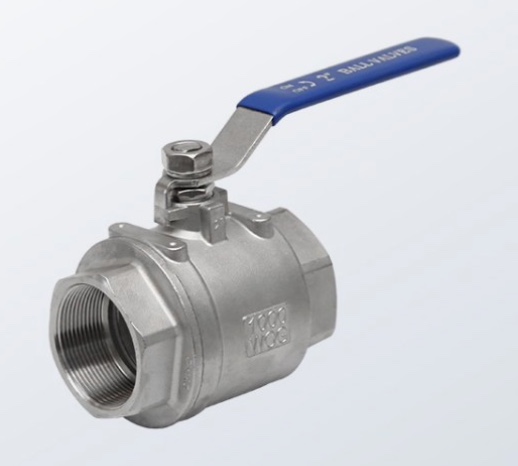

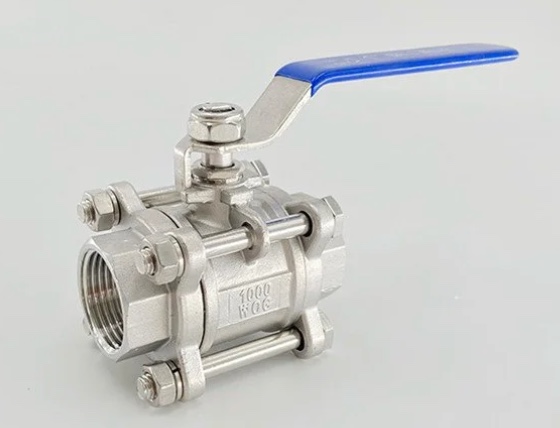

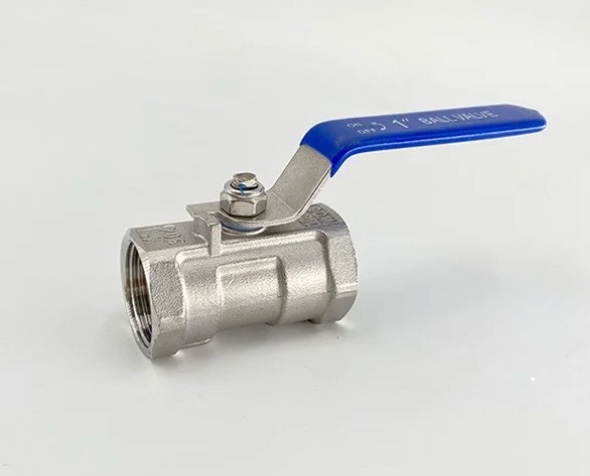

| DN | G | 1PC BALL VALVE | 2PC BALL VALVE | 3PC BALL VALVE | |||||||||
| D | L | W | H | D | L | W | H | D | L | W | H | ||
| DN06 | 1/4'' | 5 | 40 | 80 | 34 | 10 | 55 | 95 | 54 | 11 | 65 | 95 | 57 |
| DN10 | 3/8'' | 7 | 45 | 80 | 38 | 12 | 55 | 95 | 54 | 12 | 65 | 95 | 57 |
| DN15 | 1/2'' | 9 | 57 | 88 | 43 | 15 | 62 | 110 | 63 | 15 | 75 | 110 | 58 |
| DN20 | 3/4'' | 12 | 60 | 88 | 51 | 90 | 7 | 115 | 76 | 20 | 85 | 115 | 71 |
| DN25 | 1'' | 15 | 72 | 105 | 58 | 25 | 85 | 135 | 97 | 25 | 90 | 135 | 85 |
| DN32 | 11/4'' | 20 | 80 | 105 | 68 | 32 | 102 | 150 | 110 | 32 | 112 | 150 | 95 |
| DN40 | 11/2'' | 25 | 85 | 125 | 78 | 40 | 108 | 175 | 125 | 38 | 120 | 175 | 103 |
| DN50 | 2'' | 32 | 100 | 125 | 92 | 50 | 124 | 190 | 140 | 50 | 145 | 190 | 120 |
| DN65 | 21/2'' | 38 | 125 | 180 | 132 | 65 | 163 | 220 | 164 | 65 | 170 | 220 | 162 |
| DN80 | 3'' | 50 | 150 | 190 | 150 | 80 | 185 | 250 | 184 | 80 | 200 | 250 | 200 |
| DN100 | 4'' | 65 | 195 | 215 | 177 | 100 | 225 | 320 | 248 | 100 | 263 | 320 | 227 |
