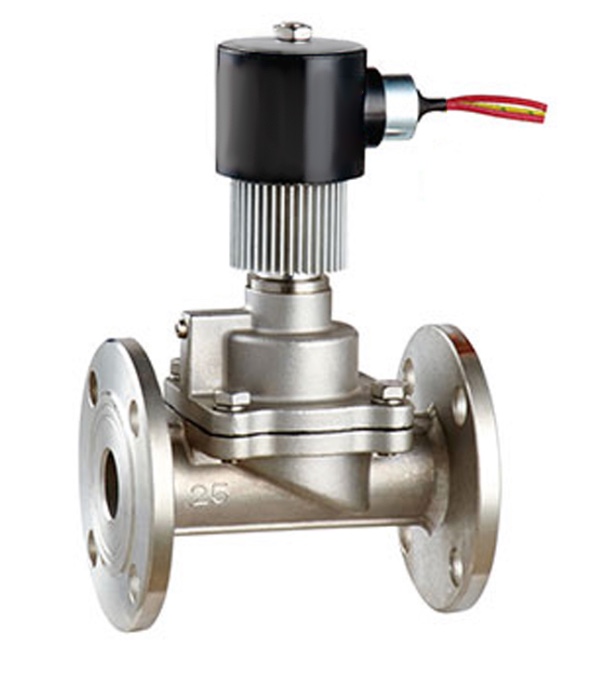

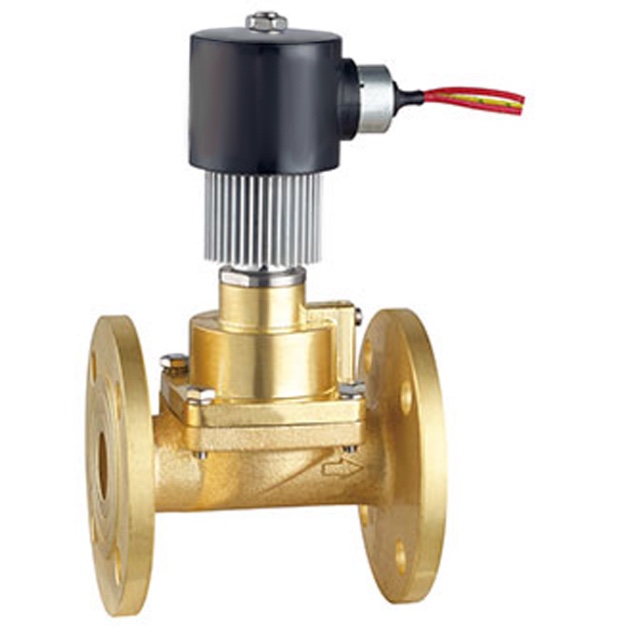

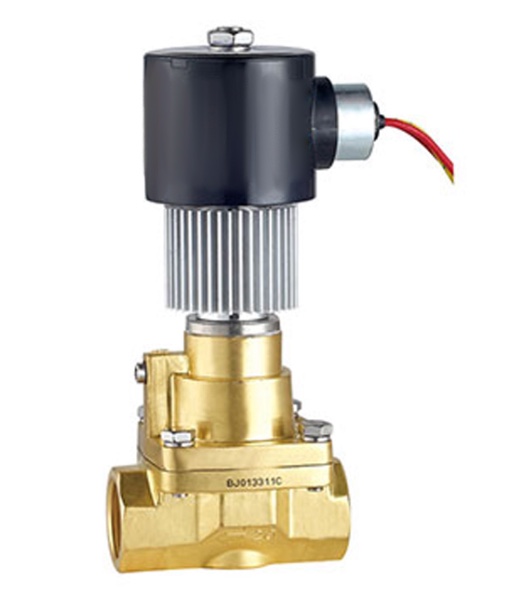

Solenoid Valve for High Temperature Steam

Working medium: high-temperature gas, liquid, heat-conducting oil
Medium temperature: 0℃~250℃
Working pressure: 0.5~16 bar
Working type: step-by-step direct-acting, pilot-operated (normally closed)
Valve body material: brass, stainless steel SS304
Seal material: polytetrafluoroethylene (PTFE)
Working voltage: AC220～240V, AC110V50/60Hz, Pilot and stepwise direct-acting DN15/20mm: 23VA, stepwise direct-acting DN25～50mm 48VA. DC24V Pilot and stepwise direct-acting DN15/20 is 28W, stepwise direct-acting DN25～50mm is 42W.
