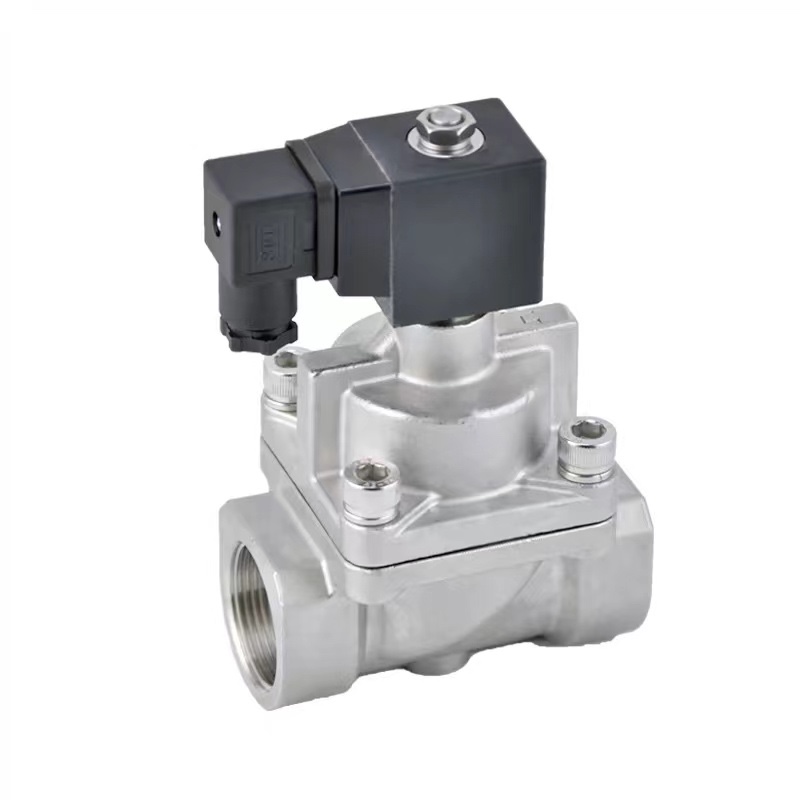

Two-position two-way stainless steel piston type high-pressure solenoid valve

Working medium: air, liquid, etc.

Fluid Temperature: -5℃～80℃

Working pressure: 6～120bar (see specification table)

Working type：Pilot-operated

Valve body material: stainless steel SS304

Seal material: polytetrafluoroethylene (PTFE)

Connection type: threaded (G thread, NPT thread), flange connection

Working voltage: standard ES energy-saving coil (AC220V8VA,DC24V6W)

Conventional coil AC220V~240V,50/60Hz24VA,DC24V20W.IP65,H class. Other voltages can be customized.

Optional:

LED indicator junction box, Ex potting type low temperature explosion-proof coil, valve body Rc thread.
