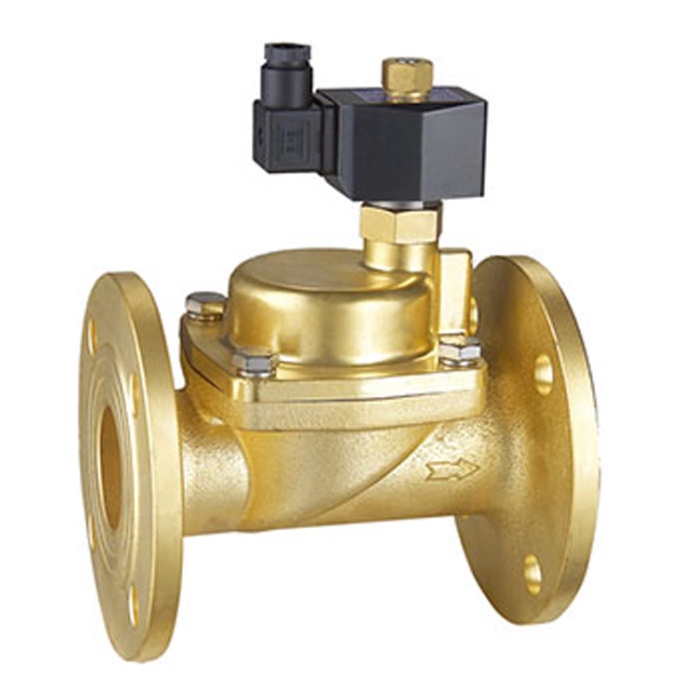

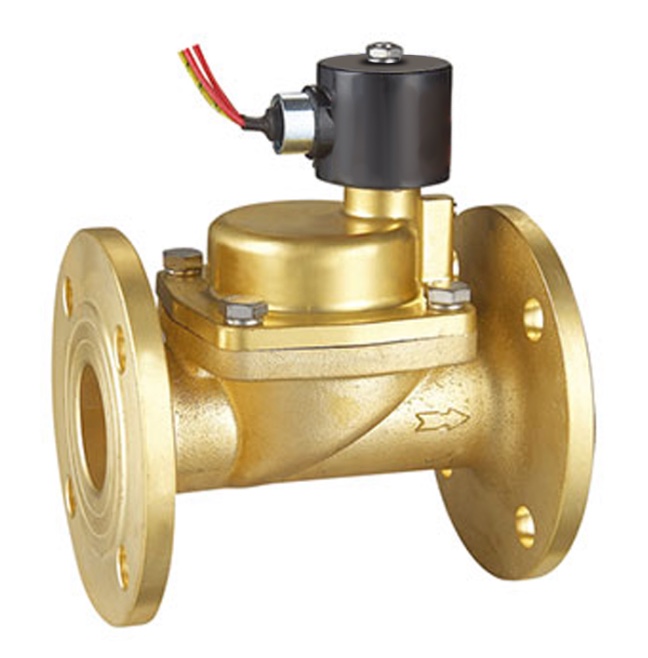

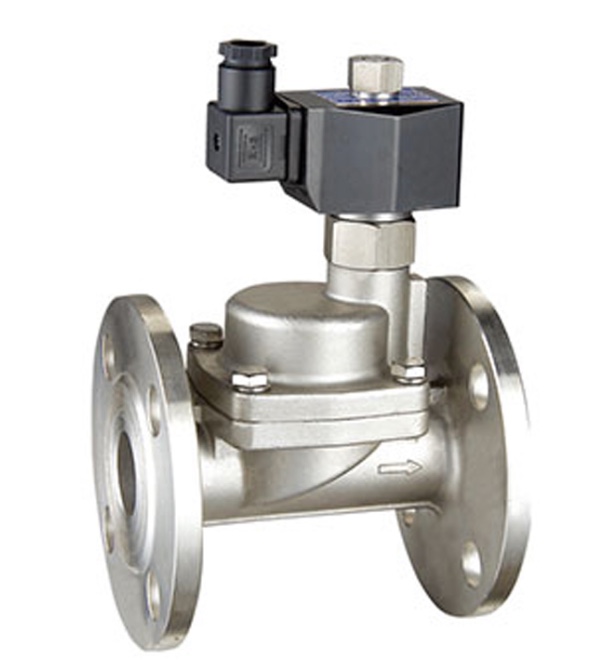

Flange Pilot Operated Solenoid Valves for Steam

Working medium: steam, high temperature liquid, etc.
Fluid temperature: 0℃~180℃
Working type: pilot operated (normally closed, normally open)
Working pressure: 0.4 ~ 16bar (see specifications)
Valve body material: copper, stainless steel SS304
Seal material: polytetrafluoroethylene (PTFE)
Connection type: flange connection
Working voltage: normally closed type: AC220~240V, AC110V50/60Hz20VA,DC24V20W. leaded plastic coil, IP65, H class.
Normally open type: AC220~240V, AC110V 50/60Hz23VA,DC24V 28W.
Optional: DIN43650A standard junction box configuration of the molded coil
