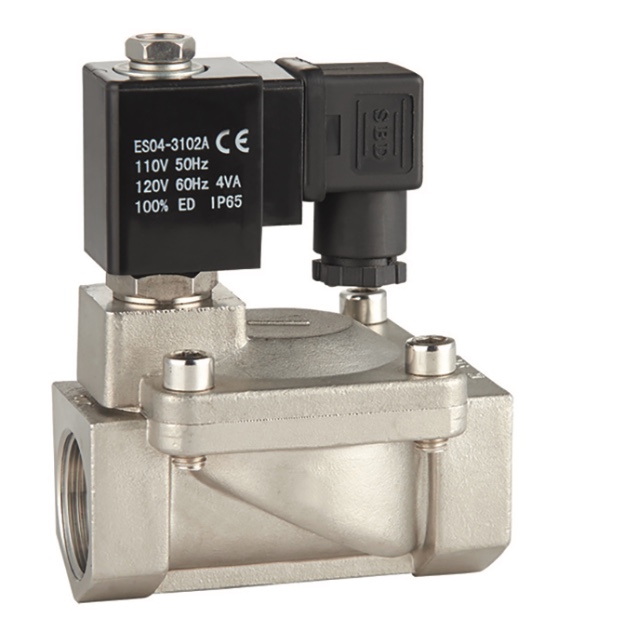

Pilot Operated Solenoid Valves

Working medium: water, liquid, gas, light oil (≤20CST)

Fluid temperature：-5℃～80℃

Working pressure: 0.3～16bar (see specification table)

Working type: pilot operated (normally closed)

Valve body material: brass, stainless steel SS316

Seal material: nitrile rubber (NBR)

Interface thread: G thread, NPT thread

Operating voltage: AC220～240V, AC110V50/60Hz22VADC24V/12V13W. IP65, H class.

Optional

Sealing material (EPDM, Viton), valve body threads Rc time timing controller, LED indicator junction box

ES energy-saving coil (AC220V3VA, DC24V3W) Ex casting type low temperature explosion-proof coil AC220V 5VA,DC24V
