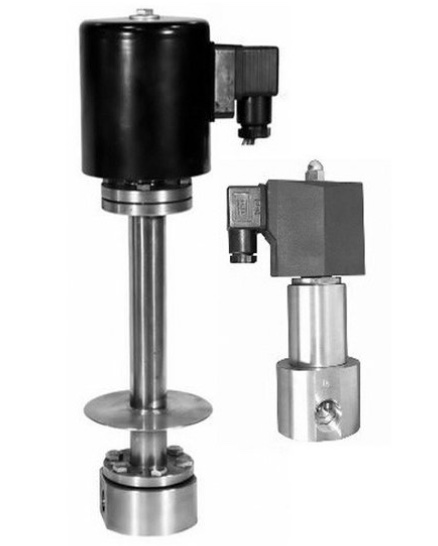

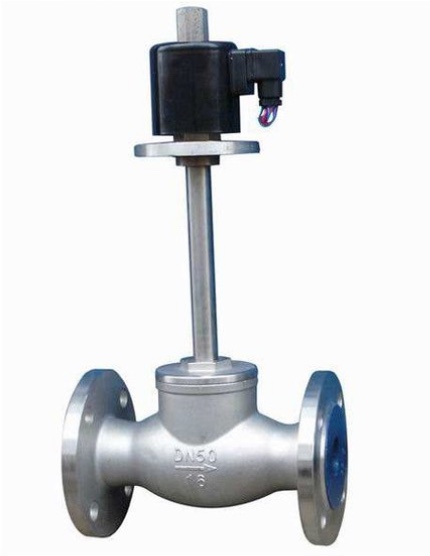

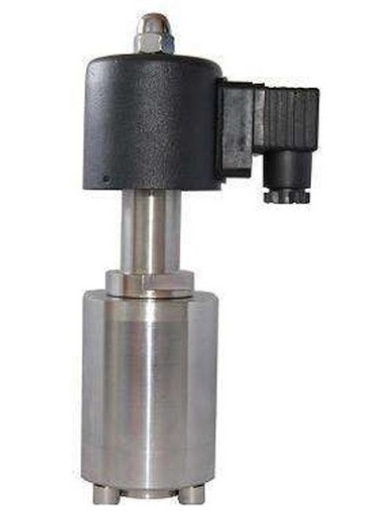

low temperature liquid nitrogen solenoid valve

Nominal diameter: DN1-100
Principle and structure: direct-acting piston type, pilot piston type
Valve body material: SS304.SS316.SS316L
Applicable fluids: liquid nitrogen, liquid oxygen, liquid ammonia, carbon dioxide, LPG, LNG refrigerant fluids, etc.
Fluid temperature: -196°C,-100°C,-40°C,+80°C,+200°C
Fluid pressure: 1BAR.6BAR.16BAR.25BAR.40BAR.50BAR.64BAR.100BAR~500BAR
Connection: female thread, male thread, flange, welding, ferrule
Installation: Horizontal installation, coil up (can be customized vertical installation)
Protection level: conventional IP54, explosion-proof IP65, IP67
Conventional voltage: 220VAC 50/60HZ 24VDC
Special voltage: 220VAC50/60HZ 380V.110V,36V,24V/DC 220V.110V.36V.12V
Voltage tolerance: 10%
Electrical connection: Common type: standard junction box
Explosion-proof type: M16*1.5 female thread to G1/2, 1.5M wire reserved, NPT, 1/2, 3/4 can be set.
