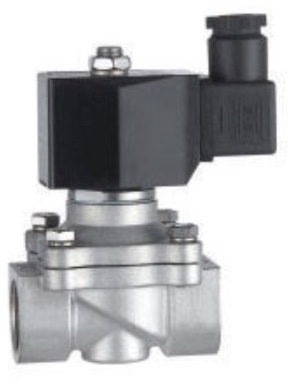

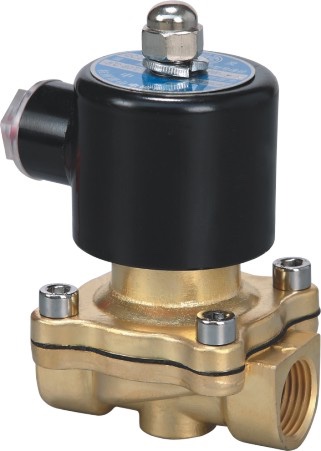

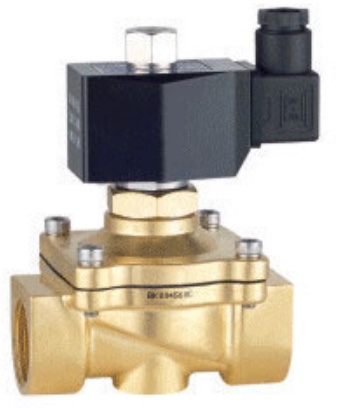

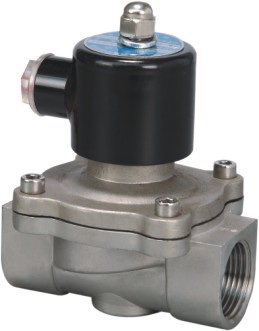

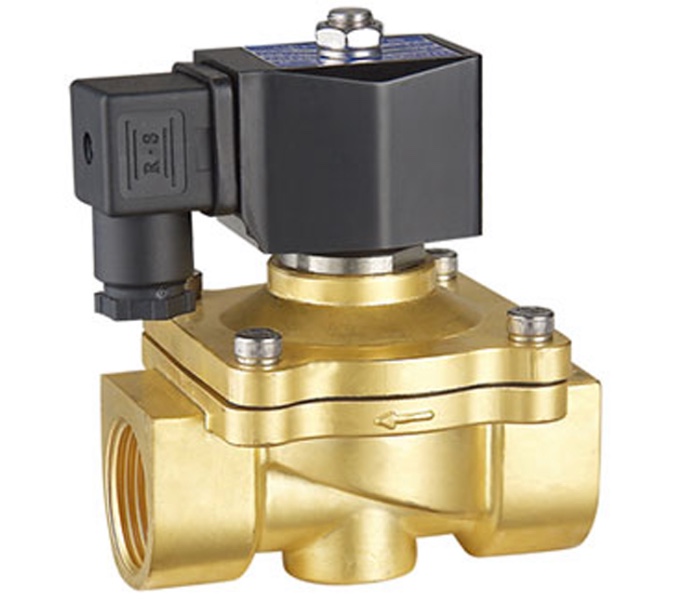

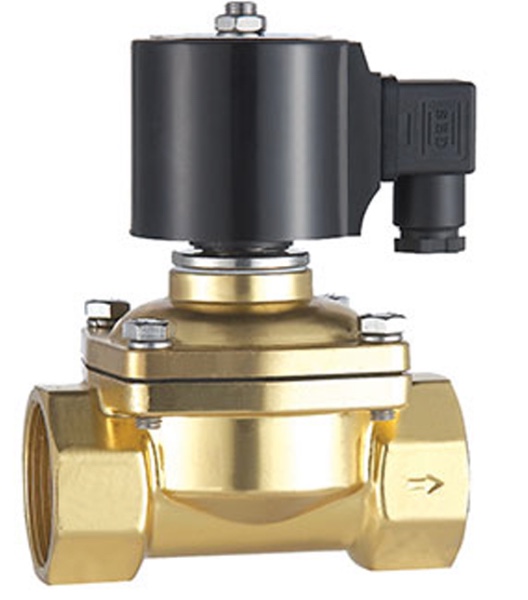

2W Stepwise Direct Acting Solenoid Valve

Working medium: water, liquid, gas, light oil (≤20cst)

Fluid Temperature: -5℃～80℃

Working pressure: 0 ~ 10bar (see specifications)

Working type: step-by-step direct-acting (normally closed)

Valve body material: brass, stainless steel SS304

Seal material: nitrile rubber (NBR)

Interface thread: G thread, NPT thread. Can be equipped with steel flange into flange connection

Operating voltage:AC220~240V,AC110V,AC24V 50/60Hz,DC24V/12V.Plastic coil IP65,Class H,Iron shell coil IP54,Class B.

DN10~20:AC20VA,DC20W.DN25:AC220V 20VA,DC 32W.DN32~50:AC30VA,DC38W.

Optional

Valve body thread Rc, sealing material (EPDM, fluorine rubber VITON or silicone rubber VMQ).

Time timer controller, LED indicator junction box;

ES low-power energy-saving coil (power DN10~25: AC220V4VA, DC24V4W. DN32~50: AC220V9VA, DC24V 8W).

Ex casting type explosion-proof coil(DN10~20:AC220V7VA,DC24V5W,DN25~50:AC220V8VA,DC24V8W);.

Leaded plastic-sealed coil (DN10~25: AC220V23VA, DC24V28W, DN32~50: AC220V48VA, DC24V42W. IP65, Class H).
