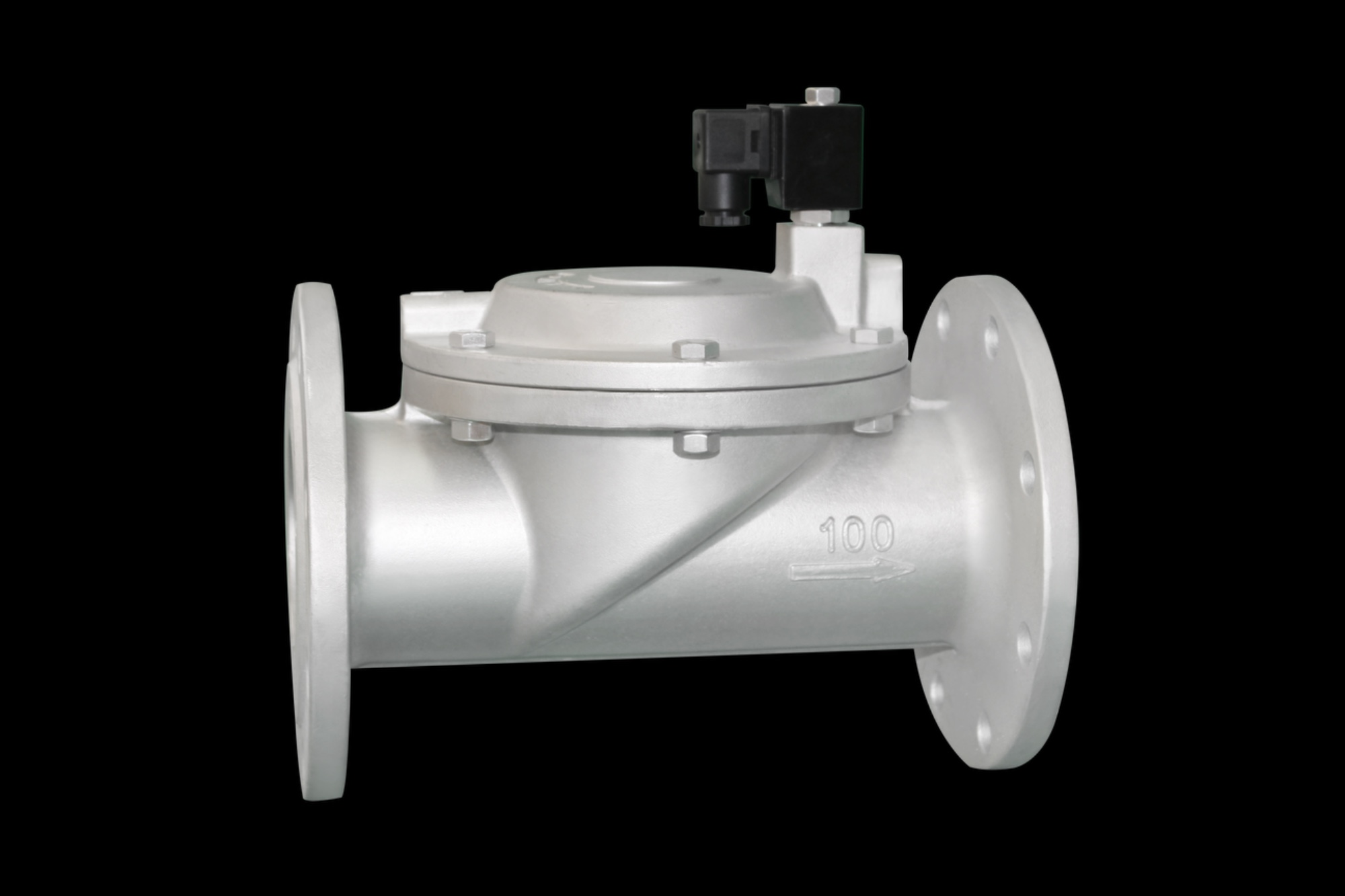

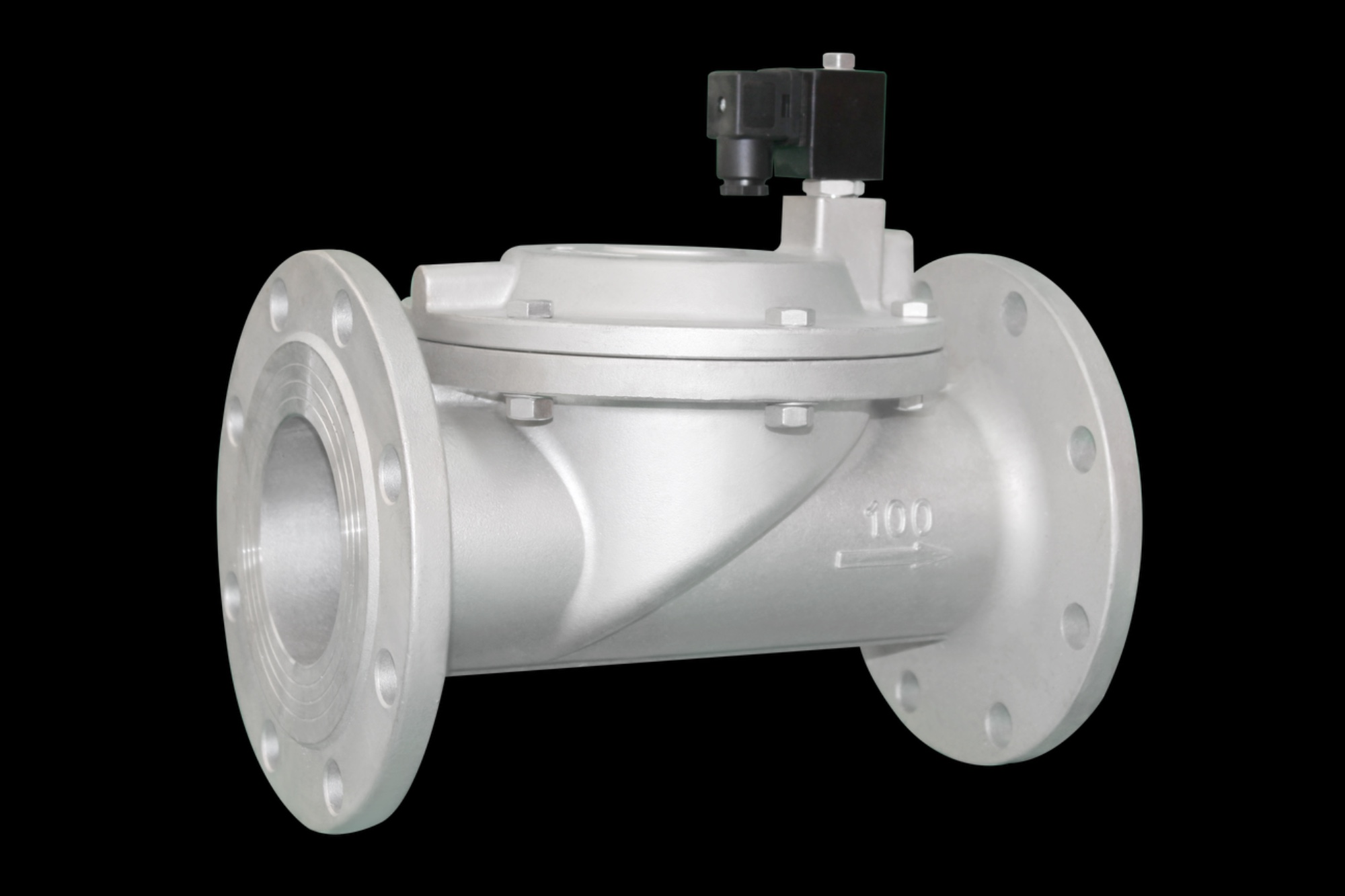

Pilot operated solenoid valve flange connection

Working medium: water, liquid, gas, light oil (≤ 20CST) Fluid temperature: -5 ℃ ~ 80 ℃

Working Pressure: 0.3~12bar (see specification table) Working Type: Pilot (normally closed) Valve Body Material: Stainless Steel SS304, Cast Iron Seal Material: Nitrile Rubber (NBR) Interface Type: Flange Connection

Operating voltage: AC220~240V, AC110V50/60Hz IP65, H class. 24VA for DN25~100mm,40VADC24V/12V for DN125~200mm:20W for DN25~100mm.32W for DN125~200mm.

Optional

Sealing material (EPDM, Viton); time timing controller, LED indicator junction box, leaded plasticized coil; iron shell coil (if ordering iron shell coil, the model number is DF-××)

ES low power consumption energy-saving coils: power DN<125mm, AC220V4VA, DC24V 4W. DN≥125mm, AC220V8VA, DC24V7W.

Ex casting type low temperature explosion-proof coil
