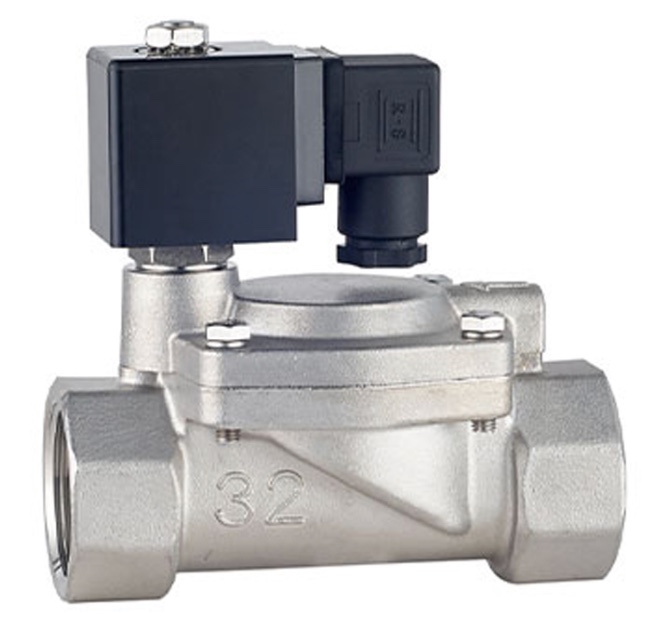

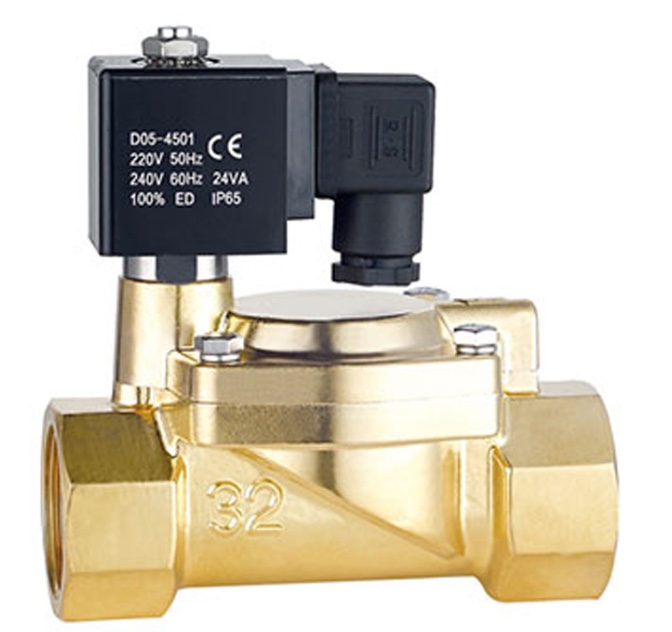

DFD Pilot Operated Solenoid Valves

Working medium: water, liquid, gas, light oil (≤20CST)

Fluid Temperature: -5℃～80℃

Working pressure: 0.3～8bar (see specification table)

Working type: pilot operated (normally open)

Valve body material: brass, stainless steel SS304

Seal material: Nitrile rubber (NBR)

Interface thread: G thread, NPT thread

Operating voltage: AC220~240V, AC110V 50/60Hz 24VADC24V/12V20W. IP65, H class.

Optional

Sealing material (EPDM, Viton); time timing controller, LED indicator junction box;

ES low-power energy-saving coil (power AC220V8VA, DC24V6W) iron shell coil (such as the choice of iron shell coil, order type DF-xxK); valve body material stainless steel SS316 can be customized, the valve body Rc thread can be customized. Can be equipped with steel flange into a flange connection
