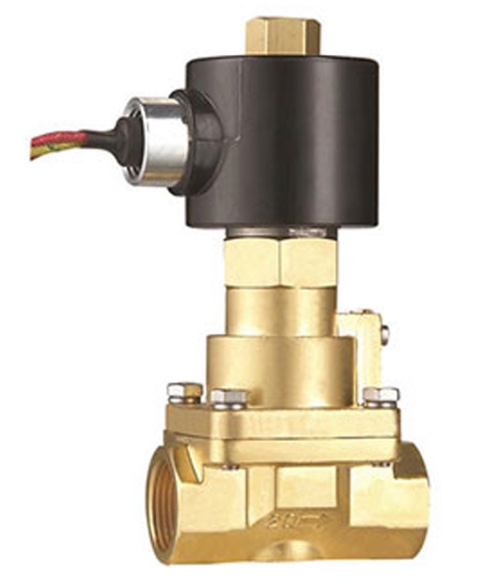

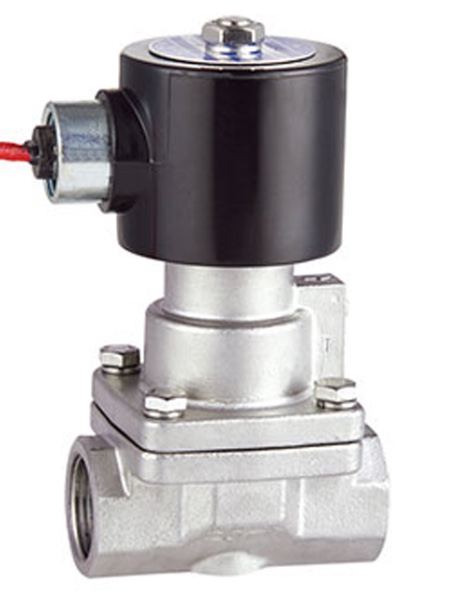

Zero Differential Pressure Solenoid Valve for Steam

Working medium: steam, high temperature liquid (viscosity ≤ 20 cst)

Fluid temperature: 0 ℃ ~ 180 ℃

Working pressure: 0 ~ 10bar (see specifications)

Working type: direct-acting type, step-by-step direct-acting type

Valve body material: forged brass, stainless steel SS304

Seal material: polytetrafluoroethylene (PTFE)

Interface thread: G thread, NPT thread. rc thread can be customized.

Working voltage: AC220~240V, AC110V DC24V. plastic coil lead type, IP65, H class. Other voltages can be customized. Plasticized coil terminal type is optional

Coil power: DN2.5~4: AC220V/110V22VA, DC24V 13W DIN43650A terminal type.

DN15~20:AC220V 23VA, DC24V 28W leaded plasticized coil.

DN25~50:AC220V48VA,DC24V 42W leaded molded coil.
