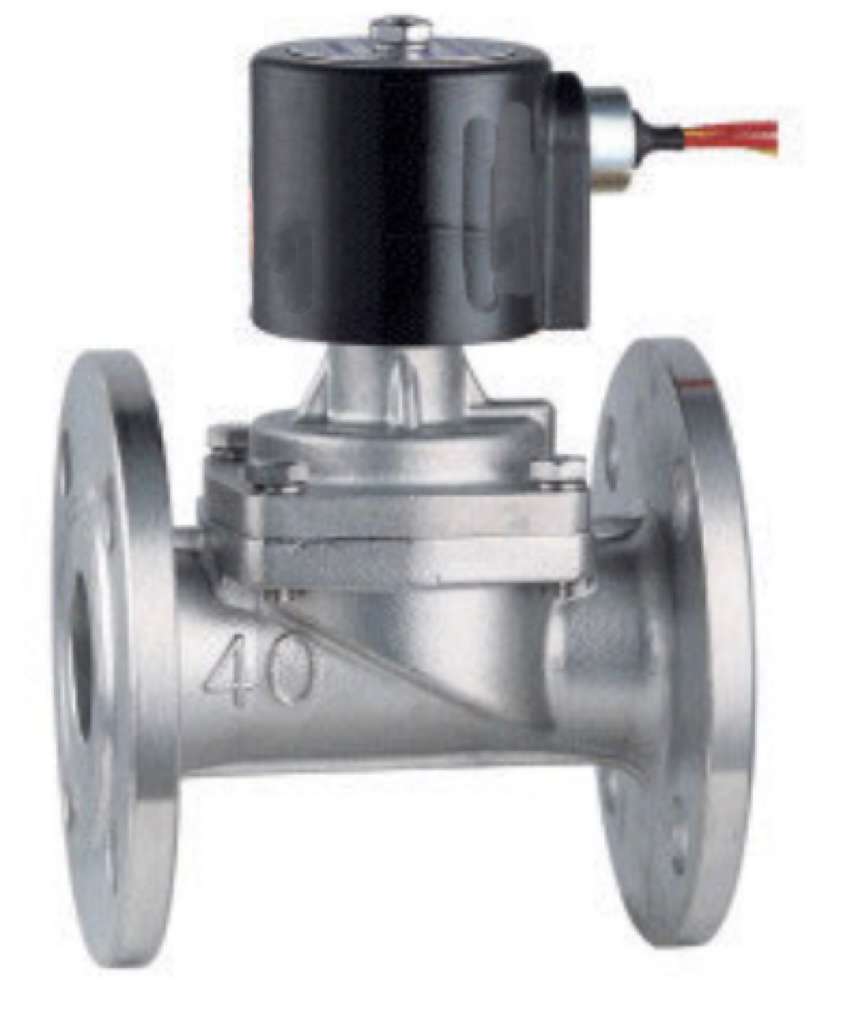

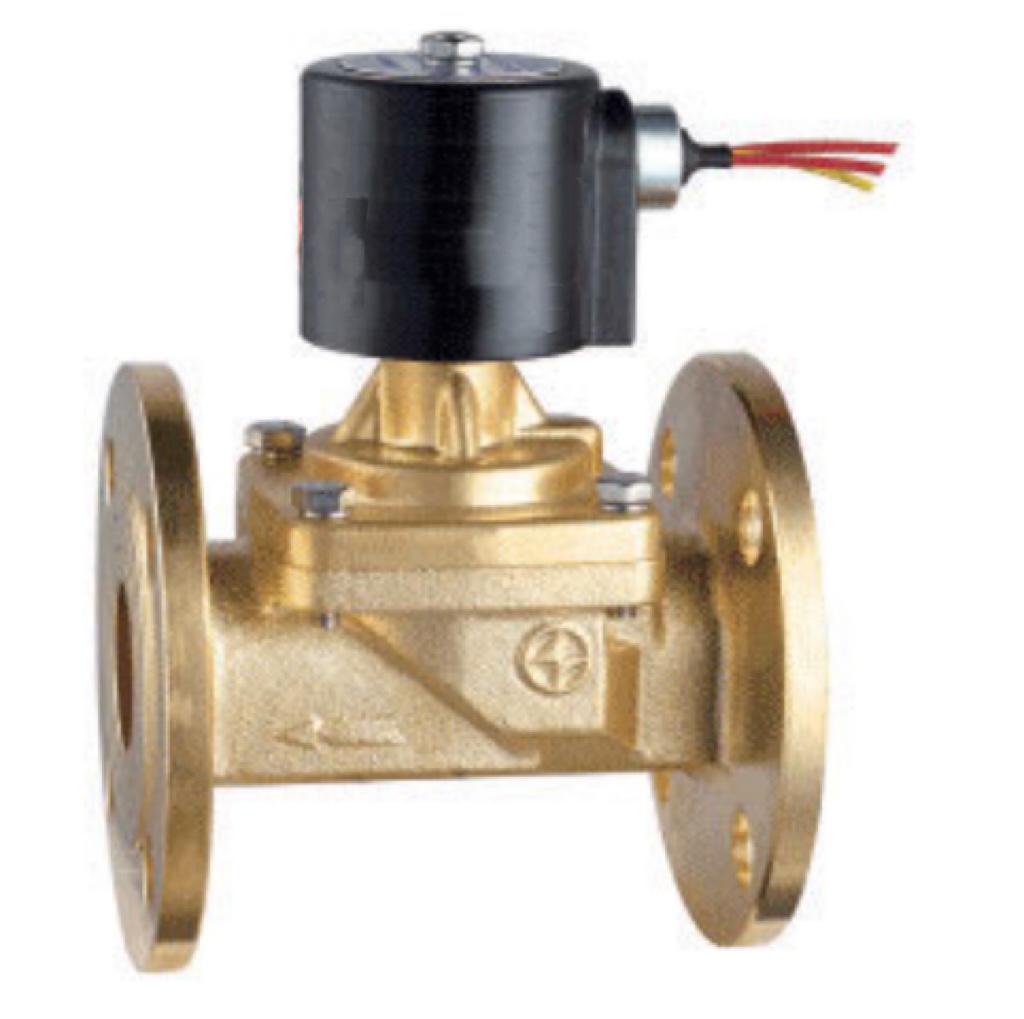

Zero Differential Pressure Solenoid Valve for Steam Flange Connection

Working medium: water, liquid, gas

Fluid temperature: -5 ℃ ~ 80 ℃

Working pressure: 0～7 bar

Working type: step-by-step direct-acting type (normally closed, normally open)

Valve body material: PA66 (Germany)

Seal material: Nitrile rubber (NBR)

Interface thread: G thread, NPT thread

Operating voltage: AC220V~240V, AC110V 50/60Hz, DC24/12V. IP65, Class H. Plasticized coil configured by DIN43650A junction box.

DN15~20mm:AC220V 20VA, DC24V 20W.

DN25mm:AC220V 20VA, DC24V 32W.

DN32~50mm:AC220V 30VA,DC24V 38W.

Optional: LED indicator junction box, leaded plastic coil, ES energy-saving coil, Ex casting type explosion-proof coil (ES, Ex with the valve allows the fluid temperature -10 ℃ ~ +80 ℃)

ES coil power: AC220V: DN15~25mm normally closed type 4VA, normally open type 5VA, DN32~50mm 9VA.

DC24V:DN15~25mm normally closed type 4W,normally open type 6W,DN32~50mm 8W
