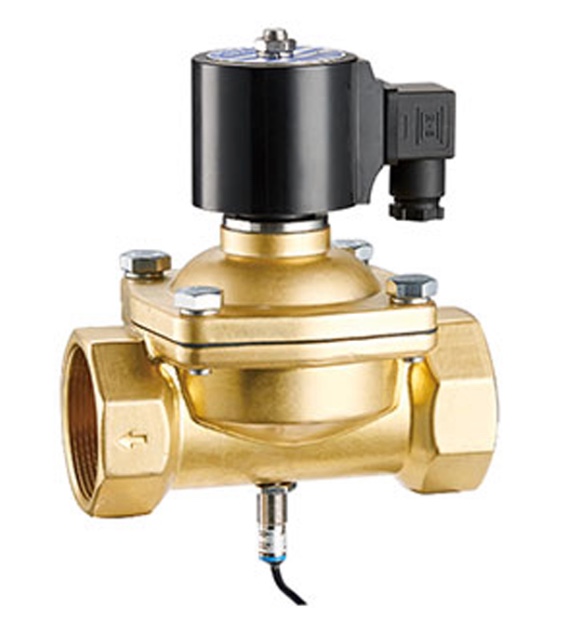

Signal feedback solenoid valve

Working medium: liquid, gas
Fluid temperature: 10~70°C
Working pressure: 0~7bar
Ambient temperature: -10~50C
Valve body material: brass, SS304
Working type: step-by-step direct-acting type, pilot-operated type
Interface type: G thread, NPT thread, flange connection
Seal material: Nitrile rubber (NBR), optional EPDM or VITON.
Operating voltage: AC220~240V,AC110V50/60Hz20VA;DC24V20W.IP65,H-class
Signal sensor voltage: DC12~24V, consumption current ≤15mA, load current 200mA, cable length standard 2M
Signal sensor output mode: normally closed type, LED (red) light up when the solenoid valve is open, protection grade IP68
