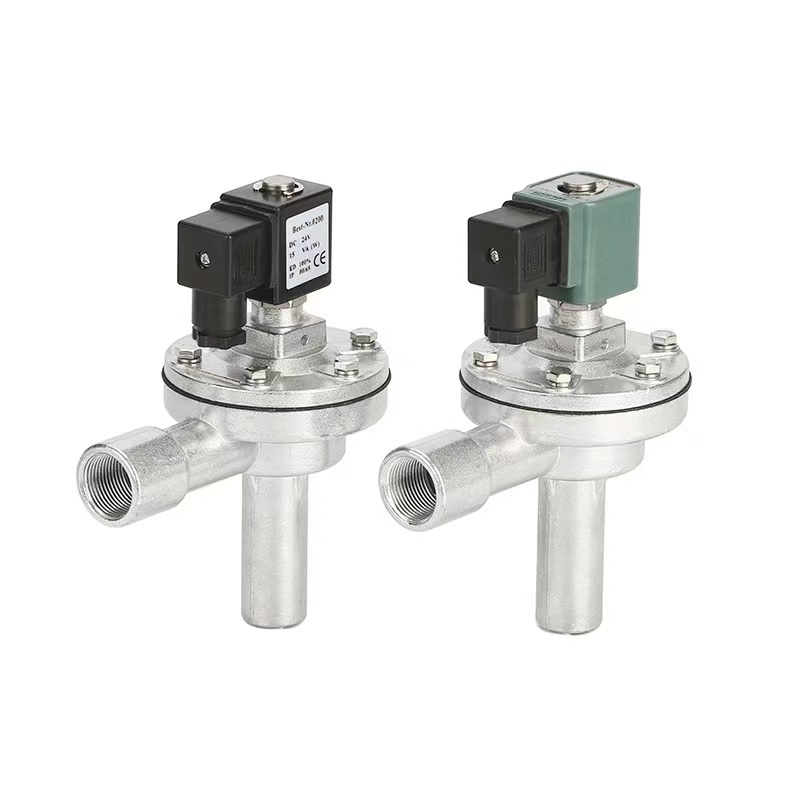

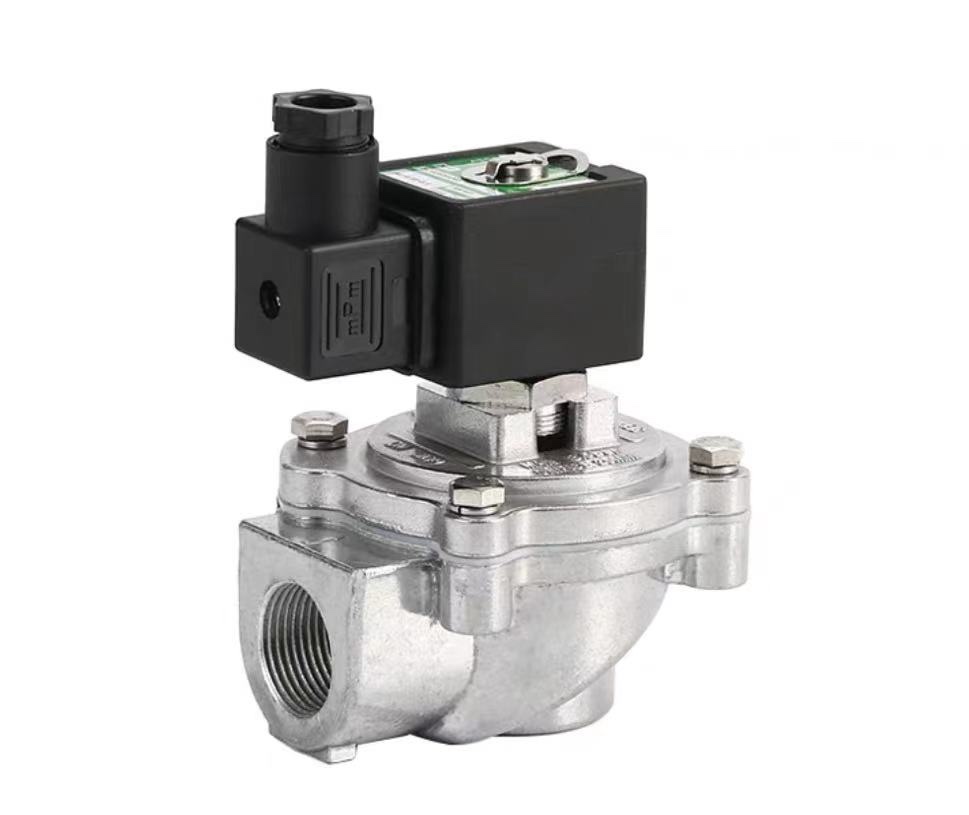

Dedusting Pulse Valve

Features:

1、Pilot diaphragm type structure, all aluminum valve body material;

2, with low power consumption, low voltage and other characteristics;

3, fully enclosed solenoid coil, the main valve using special rubber diaphragm structure;

4, the use of aluminum valve body has a low cost characteristics;

Medium: clean compressed air

Fluid temperature:

Nitrile rubber: -5 ℃ -55 ℃

Scope of application:

It is the most widely used solenoid valve in the current dust removal equipment; used in pharmaceutical factories,

Paper factory, wood factory, feed fertilizer factory, dyestuff factory, dust collector and petrochemical industry.

Industry and other industries, it is the first choice for bag dust removal and soot blowing system.

Pressure: 0.3~0.8MPa

Connection size: 1",1-1/2",2",2-1/2,76 submerged type

Thread: G thread, Y submerged type

Through Diameter(mm):25,40,50,62,76 Voltage:AC22V,DC24V etc. Range:±10% Coil:S044,20VA(AC),20W(DC),IP65,100%ED

S051,18VA(AC),24W(DC),IP65,100%ED

Material: Valve body-Aluminum

Seals-imported nitrile rubber movable iron core-430F static iron core-430F spring-SUS304 magnetic ring-violet copper
