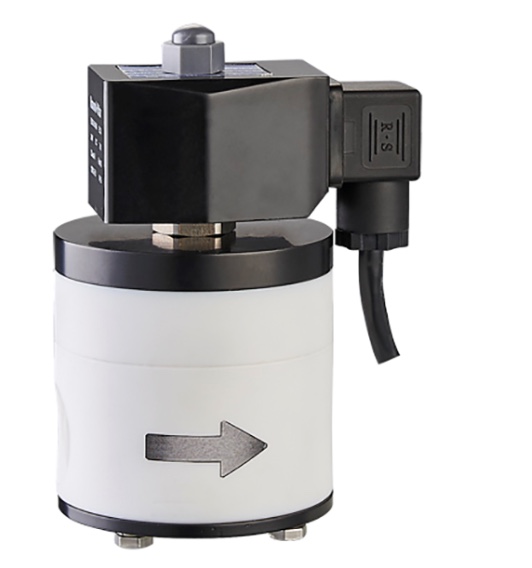

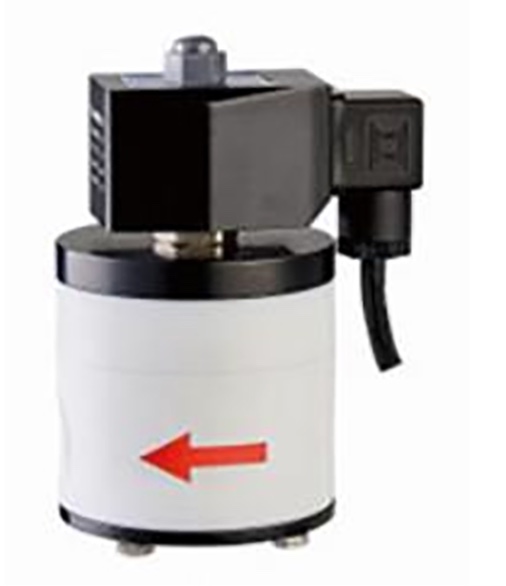

ZCF-X series piston type anti-corrosion solenoid valve

Working medium: acid and alkali and other corrosive media (liquid, gas)

Fluid temperature: -10 ~ 80 ℃

Ambient temperature: -10 ~ 50℃

Working pressure: 0.3～6bar

Working type: pilot diaphragm type (normally closed)

Valve body material: full polytetrafluoroethylene (PTFE)

Seal material: fluorine rubber (VITON), optional EPDM rubber (EPDM)

Receiver thread: G thread, NPT thread

Working voltage: AC220 start power 154VA keep power 8VA, AC110V start power 85VA keep power 8VA, DC24V start power 50W keep power 7W.

Protection class IP65, insulation class H, lead length 0.2 meters.
