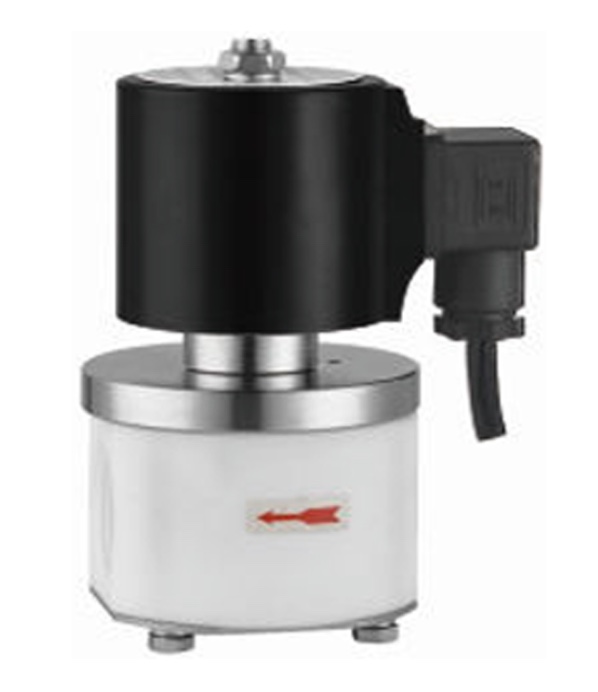

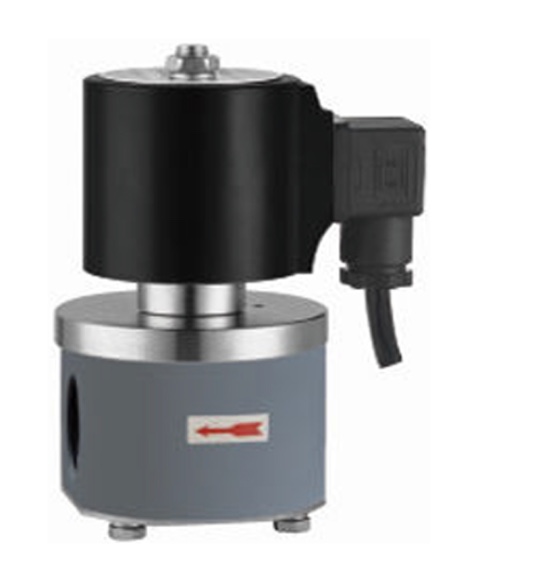

ZCF series diaphragm type anti-corrosion solenoid valve

Working medium: acid and alkali and other corrosive media (liquid, gas)
Fluid temperature: PTFE (-10 ~ 80 ℃), UPVC (-5 ~ 55 ℃)
Working Pressure: 0~4bar (see the table below)
Working type: direct-acting diaphragm type
Valve body material: polytetrafluoroethylene (PTFE), polyvinyl chloride (UPVC)
Seal material: fluorine rubber VITON
Interface thread: G thread (standard)
Working voltage: low-temperature coil, protection class IP65, insulation class H
ZCF-2~8:AC220 start power 130VA keep power 6VA,AC110V start power 95VA keep power 6VA,DC24V start power 24W keep power 5W.
ZCF-10~25:AC220 start power 170VA keep power 9VA,AC110V start power 82VA keep power 7VA,DC24V start power 75W keep power 8W.
Lead wire length 0.2m.
